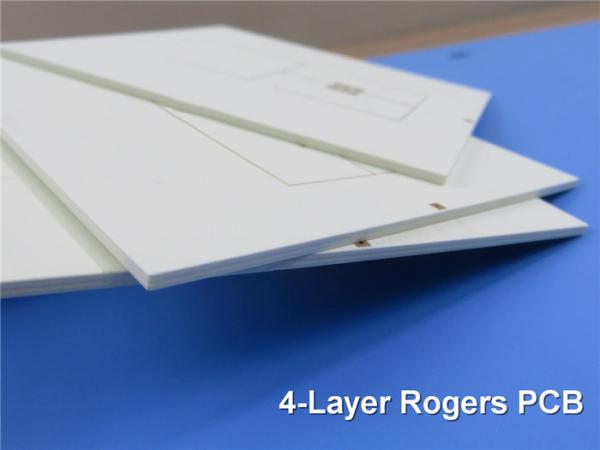

4 Layer High Frequency PCB Built On 6.6mil and 20mil RO4350B with Blind Via for Radar Sensor

(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)

Hi Everyone,

Multilayer Rogers PCBs are constructed using multiple cores combined, distinguishing them from FR-4

multilayer PCBs. In the RO4350B family, there are 8 cores available, ranging from 4 mil (0.101 mm) to

60 mil (1.524 mm) in thickness. This diversity in core options allows for a wide range of design possibilities

and performance characteristics in Rogers PCBs, setting them apart from traditional FR-4 boards.

So it’s very interesting that the stack-up of 4 layers can be configured in numerous ways.

Today, we are focusing on Rogers 4-layer PCBs fabricated using 6.6 mil and 20 mil RO4350B substrates.

Let’s begin by examining the first stack-up configuration.

Layer 1 to Layer 2 comprises the first core of 6.6 mil, while Layer 3 to Layer 4 consists of the second

core of 20 mil. These cores are interconnected through two sheets of RO4450F (1 RO4450F = 4 mil).

This specific board is tailored for radar sensor applications, with a thickness of 1.0 mm and pads featuring

immersion gold plating. It incorporates blind vias from the top layer to the inner layer 1.

Given its asymmetric build, a maximum warpage of 1.2% is permissible. Manufactured in compliance with

IPC 6012 Class 2 standards, this board is produced using provided Gerber data. Each shipment contains

10 boards securely packed for transportation.

The second one is very similar to previous one, the stack-up explains all.

Features and Benefits

Dielectric Constant (DK):
Low and stable DK ensures excellent signal transmission without delay.

Immersion Gold Surface:
Provides exceptional surface planarity, especially beneficial for PCBs with BGA or CSP components,

reducing failure rates during assembly and soldering.

Comprehensive Testing:
Includes electrical tests, AOI inspection, thermal stress tests, reliability tests, insulation resistance tests,

and ionic contamination tests for quality assurance.

Fast and Flexible Production:
Enables quick transition from prototype to standard production, saving valuable time.

Compliance:
UL recognized and RoHS Directive-compliant, ensuring adherence to industry standards.
